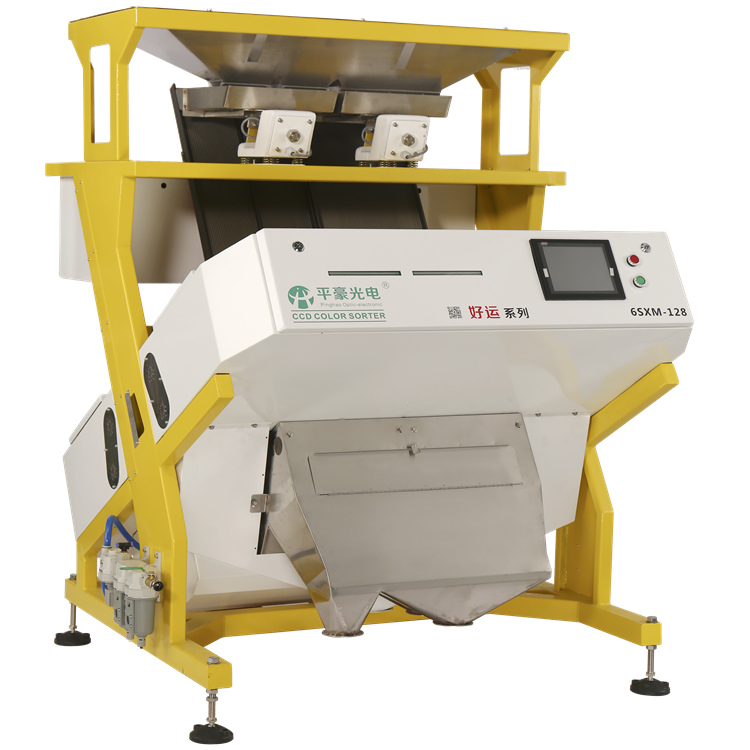

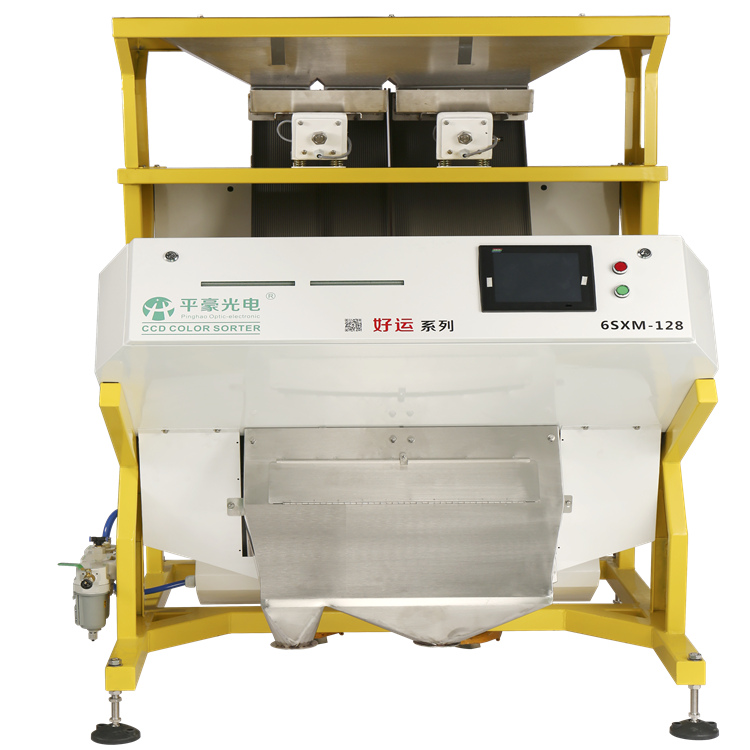

Coffee bean color sorting machine

INTRODUCTION

1)One button operation
2)Competitive price for distibutor
3)Reliable support and easy maintenance
4)Heavy duty

  • Introduction
  • Coffee bean color sorting machine



    Coffee bean color sorter is widely used for coffee bean producer to classify coffee bean and remove other impurity throught color difference. It is designed for coffee bean manufacturer with high production capacity. Color sorting machine is also used to sort grain, bean, nuts and some cash crop for it is installed colorful RGB CCD camera with high definition and accuracy.





    Coffee bean color sorting result demo:







    Coffee bean color sorting machine specification



    Model

    6SXM-63

    6SXM-80 (R1)

    6SXM-127 (R2)

    6SXM-192 (R3)

    Throughput(T/H)

    0.5-1.5

    0.5-2

    1-3

    3-8

    Accuracy(%)

    ≥99.9

    ≥99.9

    ≥99.9

    ≥99.9

    Optimal Reject Rate

    ≥10:1

    ≥10:1

    ≥10:1

    ≥10:1

    Weight(KG)

    240

    310

    580

    700

    Power(KW)

    1.0

    1.0

    1.4

    1.6

    Dimension
    (L×W×H)(MM)

    1600*1000*1650

    963*1507*1772

    1338*1507*1772

    1682*1507*1772

    Air Pressure(MPa)

    0.6-0.8

    0.6-0.8

    0.6-0.8

    0.6-0.8

    Air Consumption(m³/min)

    0.6

    0.6

    1.2

    1.8

    Voltage

    220V/50Hz

    220V/50Hz

    220V/50Hz

    220V/50Hz



    Working principle of CCD coffee bean color sorter:

    Coffee bean color sorter can separate bad material of coffee bean by slightly color difference, color of moldy food is different, so color sorter can remove them and safeguard the food security, it can also used to remove impurity of food, recently shape sorting is also used for food classification.

    High speed CCD camera scans objects that fall from vibrating chutes, ejectors will blow away the material with different color through compressed air, optimized algorithm is the core technology of color sorter, our machine can also reject material by only the photo, it is so efficient for changeover.






    Core advantage



    1. 10K Nikon CCD camera with high definition, sorting accuracy up to 0.01mm², customized lens to achieve clear image without distortion

    2. USA chip, ARM+ FPGA, powerful hardware with intelligent algorithm.

    3. Durable LED system satisfy requirements of different color identification,separation and classification.

    4. Synchronization system makes the adjustment work into ONE BUTTON OPERATION, rejection by photo is available.

    5. Ejectors longer has longer lifetime, lower air consumption, faster speed, easier maintenance and high sorting accuracy.

    6. Wider chute up to 332mm makes increase production capacity.

    7. Self-checking system makes the machine can check the ejectors, cameras, control boards and background boards automatically.

    8. No wearing parts(except mine stone color sorter) makes 0 maintenance cost.

    Nikon colorful CCD camera                          Heavy duty rejector with long lifetime

    ARK filter                                    Touch screen with synchronization system for easy adjust

    MeanWell power supply

    USA chip                                                                              332MM wide chute

    Stable vibrator

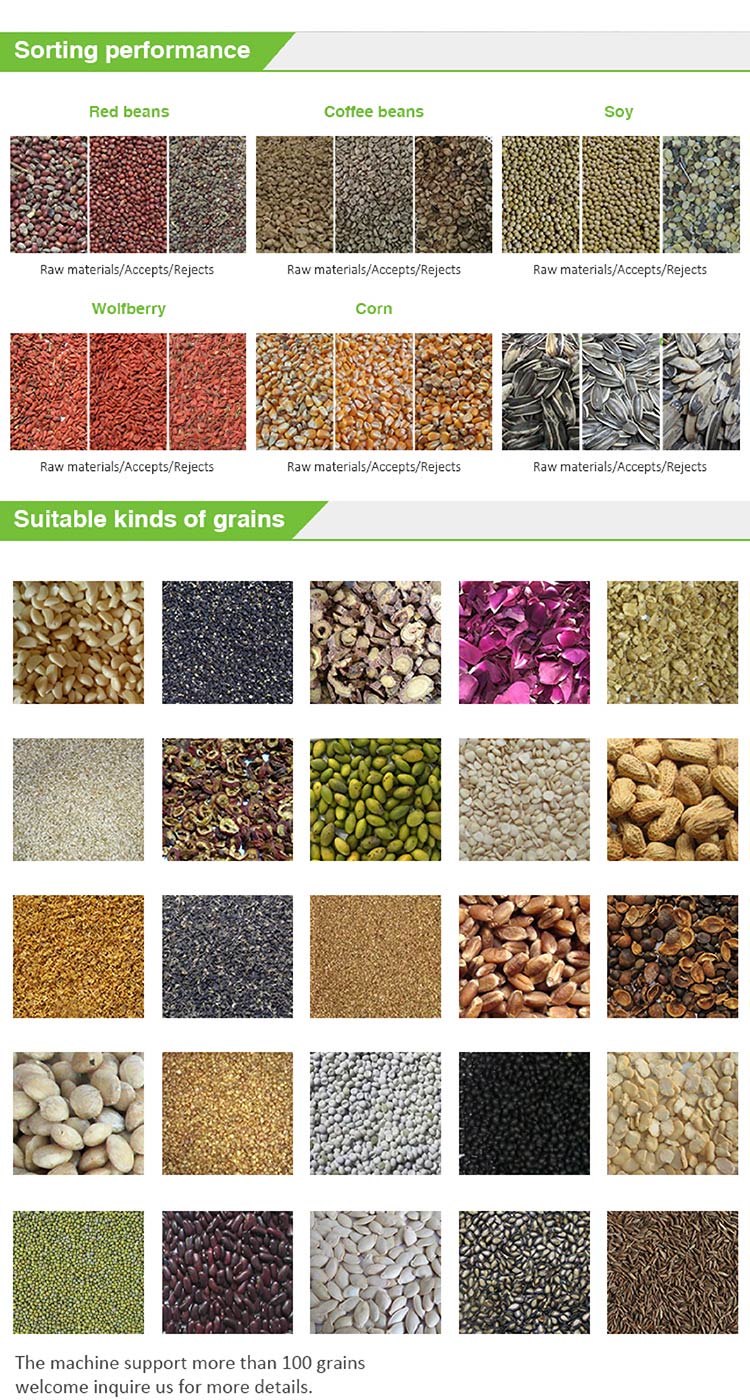

    Field of application


    After-sale Service



    •  24/7 online support

    •  We can provide 3-7 days testing & training in customer's site without charge

       (please bear engineer's air tickets fees, and arrange accommodation)

    •  Within warranty, factory provides free spare parts, user bears freight

    •  After warranty, labor cost of engineer is 100usd per day, please also bear fees of all round air ticket and accommodation
