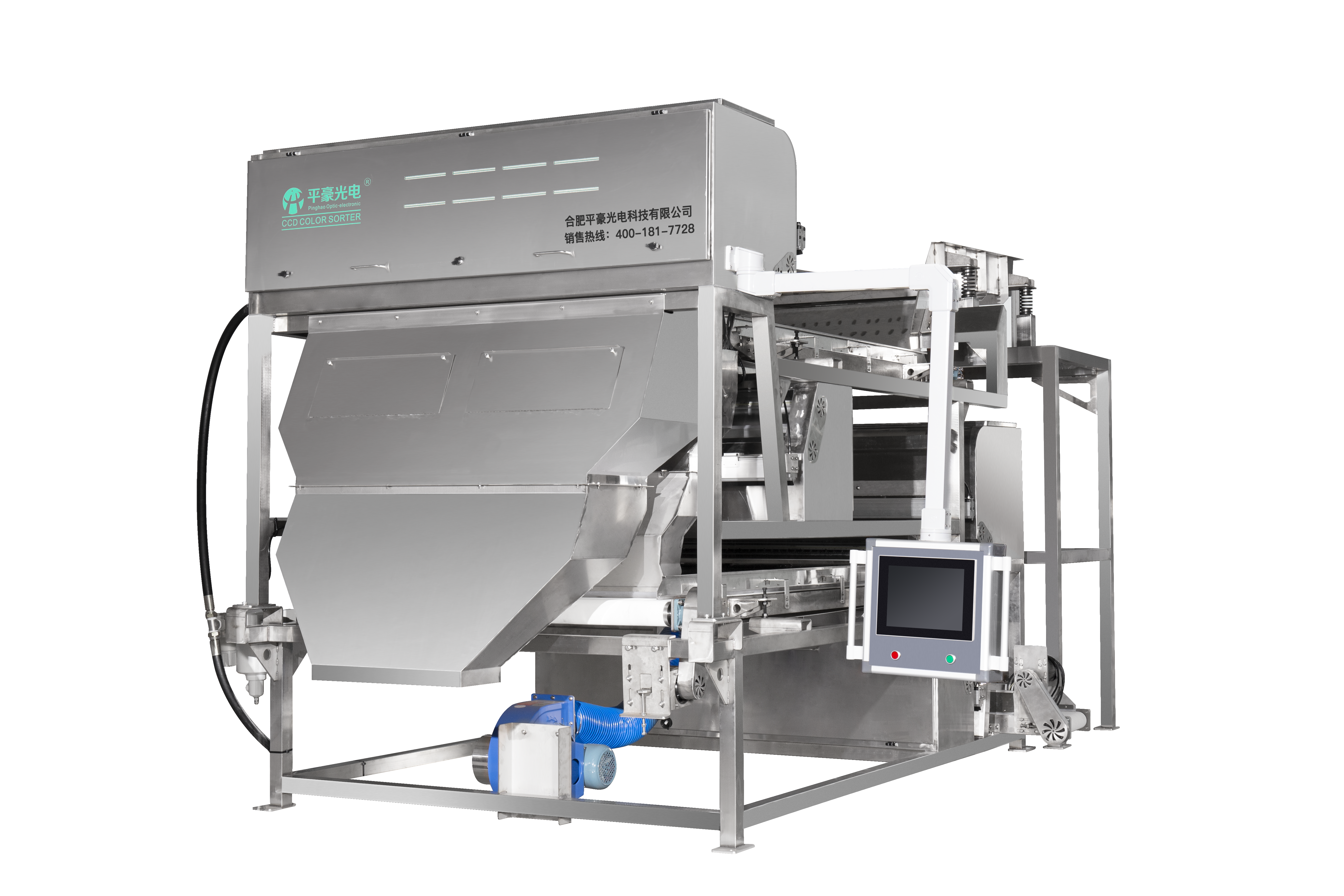

Ore stone color sorter machine

INTRODUCTION

1)One button operation
2)Competitive price for distibutor
3)Reliable support and easy maintenance
4)Heavy duty

  • Introduction
  • Ore stone color sorter machine



    Ore stone color sorting machine is widely used for Ore producer to classify and purify quartz sand, remove black or other impurity throught color difference. It is designed for Ore manufacturer with high production capacity. Ore color sorting machine is also used to sort quartz sand,calcium carbonate,fluorite,potash feldspar,albite granules and etc.(size range 5cm-120mesh)for it is installed colorful CCD camera with high definition and accuracy.


    Ore stone sorting machine result demo:



     Raw                                   Accept                           Reject





    CCD Ore stone color sorting machine Specification



    Model

    RC3-64X

    RC4-64X

    RC5-64X

    RC6-64X

    RC7-64X

    RC10-64X

    Throughput(T/H)

    1.5-9

    2-12

    2.5-15

    3-18

    3.5-21

    5-30

    Accuracy(%)

    ≥99.9

    ≥99.9

    ≥99.9

    ≥99.9

    ≥99.9

    ≥99.9

    Optimal Reject Rate

    ≥10:1

    ≥10:1

    ≥10:1

    ≥10:1

    ≥10:1

    ≥10:1

    Weight(KG)

    800

    1000

    1100

    1350

    1450

    1750

    Power(KW)

    0.6-0.9

    0.7-1.0

    0.8-1.1

    1.1-1.4

    1.2-1.9

    1.4-2.3

    Dimension
    (L×W×H)(MM)

    1510*1876*1850

    1510*2192*1850

    1510*2558*1850

    1510*2905*1850

    1510*3245*1850

    1500*4320*1850

    Air Pressure(MPa)

    0.6-0.8

    0.6-0.8

    0.6-0.8

    0.6-0.8

    0.6-0.8

    0.6-0.8

    Air Consumption(m³/min)

    1.8

    2.4

    3.0

    4.0

    5.5

    9.0

    Voltage

    220V/50Hz

    220V/50Hz

    220V/50Hz

    220V/50Hz

    220V/50Hz

    220V/50Hz


    Working principle of ore color sorter:


    Ore color sorter machine can separate bad material of ore stone and other ore by slightly color difference, color sorter machine can also used to classify materials, remove impurity, recently shape sorting is also used for classification.

    High speed CCD camera scans objects that fall from vibrating chutes, ejectors will blow away the material with different color through compressed air, optimized algorithm is the core technology of color sorter machine, our machine can also reject material by only the photo, it is so efficient for changeover.






    Core advantage



    1. 10K Nikon CCD camera with high definition, sorting accuracy up to 0.01mm², customized lens to achieve clear image without distortion

    2. USA chip, ARM+ FPGA, powerful hardware with intelligent algorithm.

    3. Durable LED system satisfy requirements of different color identification,separation and classification.

    4. Synchronization system makes the adjustment work into ONE BUTTON OPERATION, rejection by photo is available.

    5. Ejectors longer has longer lifetime, lower air consumption, faster speed, easier maintenance and high sorting accuracy.

    6. Wider chute up to 332mm makes increase production capacity.

    7. Self-checking system makes the machine can check the ejectors, cameras, control boards and background boards automatically.

    8. No wearing parts(except mine stone color sorter) makes 0 maintenance cost.

    Nikon colorful CCD camera                          Heavy duty rejector with long lifetime

    ARK filter                          Touch screen with synchronization system for easy adjust

    MeanWell power supply

    USA chip                                                         332MM wide chute

    Stable vibrator



    Field of application




    After-sale Service



    •  24/7 online support

    •  We can provide 3-7 days testing & training in customer's site without charge

        (please bear engineer's air tickets fees, and arrange accommodation)

    •  Within warranty, factory provides free spare parts, user bears freight

    •  After warranty, labor cost of engineer is 100usd per day, please also bear fees of all round air ticket and accommodation
